Version: 2025 R2

OneDrive

The functionality allows you to establish connection and retrieve database from the OneDrive service.

The connection, like all other connections in the system, is transferred via the import/export mechanism, i.e. the connection appears in the tooltip when importing files, if it is used in the process.
The connection ID is stored in the metadata of attachments so that the user can work with the correct file from the form level. If a file has been checked out in OneDrive and the connection on which the operation was performed has since been deleted, the file will remain in the OneDrive location.

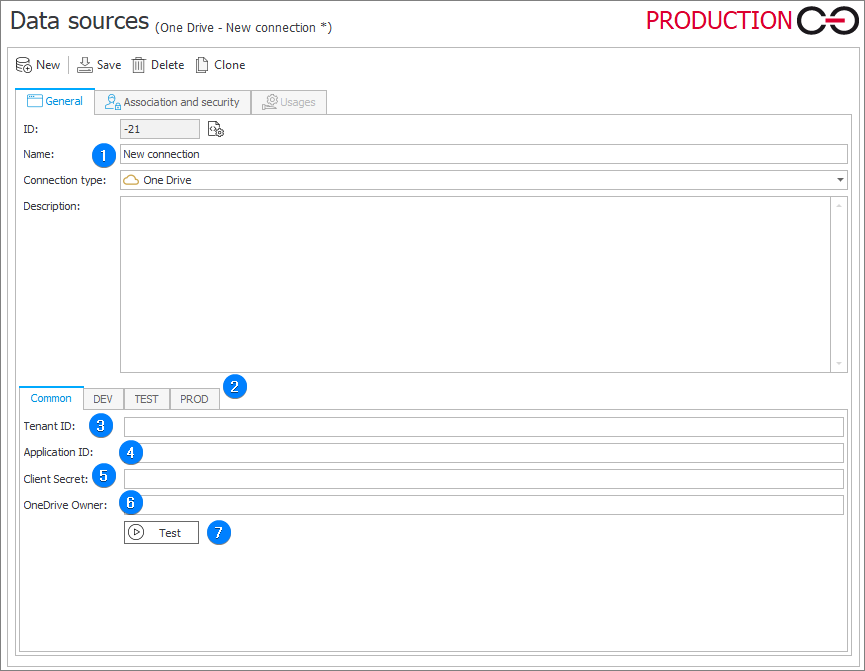

OneDrive

1. Basic connection parameters​

  • ID – the connection identifier (if the value is smaller than "0", the connection has not been saved in the database yet).
  • Name – name of the connection entered by the user.
  • Connection type – the field allows you to specify a connection type. The field is filled in automatically.
  • Description – description of the connection entered by the user.

2. Environment​

Defines the behavior of the connection in particular environments. The Common tab sets the default parameters that are to be used across all three environments (DEV/TEST/PROD). The tabs dedicated to the individual environments can be used to enter custom parameters. In such case, it is necessary to check the Break inheritance checkbox (this will override the settings specified in the Common tab) and then enter the desired connection settings.

3. Tenant ID​

The Tenant ID in the Microsoft Entra ID service.

4. Application ID​

Application ID used for authentication.

5. Client Secret​

Application/client secret.

6. OneDrive Owner​

Owner of OneDrive space where documents are stored (a dedicated technical account is required).

7. Test​

Testing the connection to the OneDrive server.
